Model No.: FST-16H
Brand: Tumtec
| Selling Units | : | Set/Sets |
| Package Type | : | by carton |
The file is encrypted. Please fill in the following information to continue accessing it

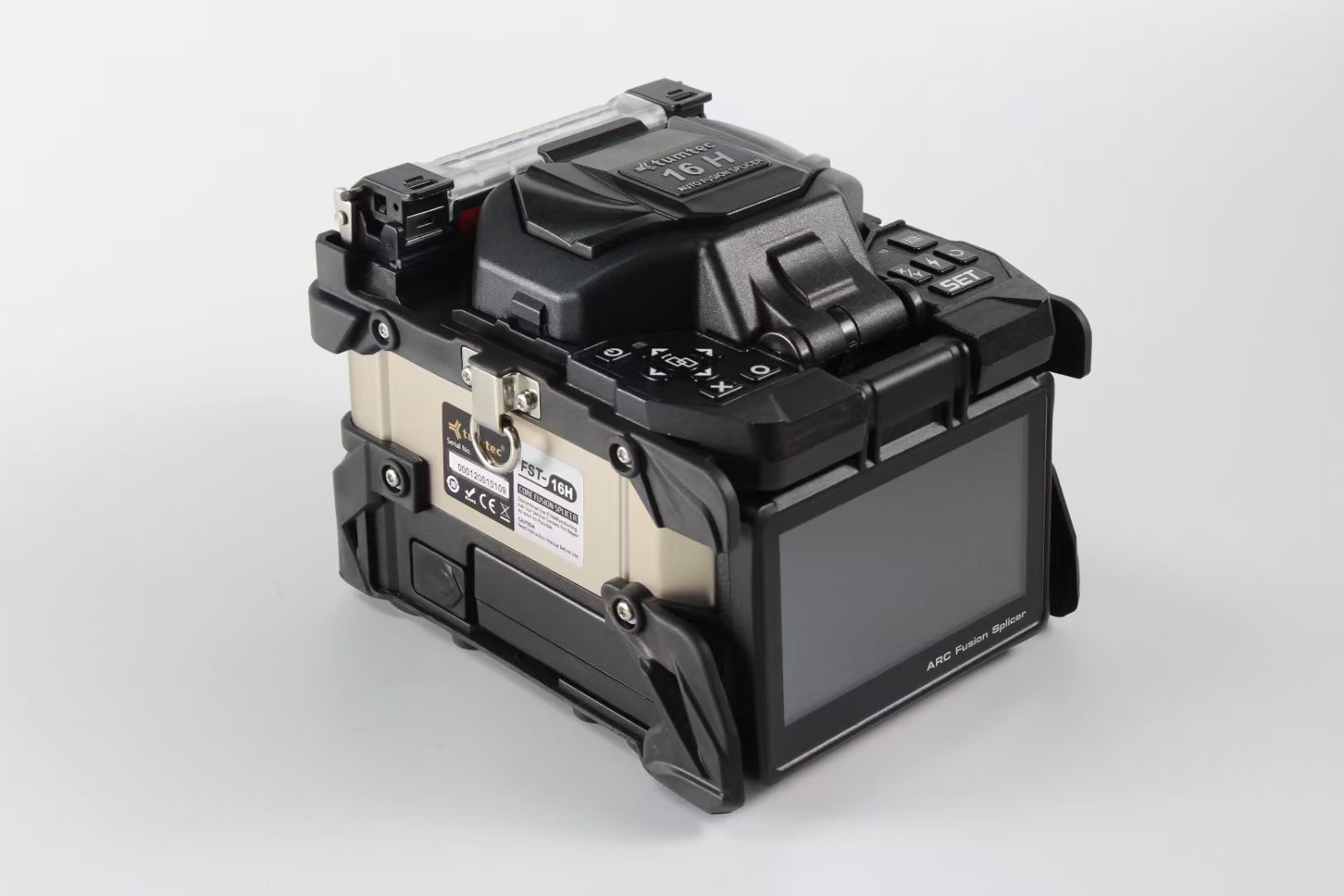

| Active Cladding Fusion Splicer/ Four motor Fiber Splicer | |||||||||
| Model | FST-16H | ||||||||
| Dimension | 115W*160L*135Hmm (excluding rubber bumper)/120W*165L*135Hmm (including rubber bumper) | ||||||||
| Weight | 1735G (with battery)/1355G (without battery) | ||||||||
| Number of Fiber | Single | ||||||||
| Applicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) | ||||||||
| Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable | ||||||||
| Cleaved Length | Coating Diameter: 0.125-1mm/Cleave length:8-16mm | ||||||||
| Cladding Diameter | 80 - 150 um | ||||||||
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes | ||||||||
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm),max 100 modes | ||||||||
| Typical Splice Loss | SM: 0.03dB / MM: 0.02dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB (ITU-T Standard) | ||||||||
| Return Loss | ≥60dB | ||||||||
| Lighting | 3 white LEDs | ||||||||
| Splicing Time | Quike mode: 6s | ||||||||
| Estimated Splice Loss | Available | ||||||||
| Heating Sleeve Length | 20-60mm | ||||||||
| Heating Time | Quick Heating Time: 13s, typical heating time: 30s | ||||||||
| Results Storage | 20000 latest records & 200 images | ||||||||
| Tension Test | 1.96-2.25N | ||||||||
| Operating Condition | Operating altitude 0-5000m above sea level, 0-95% relative humidity, -10~50℃， max wind 15m/s | ||||||||
| Storage Condition | 0~95% relative humidity, -40~80℃; | ||||||||
| Display | 90°bi-directional view,4.3" color high resolution display | ||||||||
| Fiber View & Magnification | X,Y,XY,X/Y:380×Magnification | ||||||||
| Power Supply | AC Input 100-240V,DC Input 12-15V | ||||||||
| No. of Splice/Heating with Battery | 5200mAh battery capacity, Typical 230 times (Splice + Heat) | ||||||||
| Operating Methods | Button/Touch Screen | ||||||||
| Automatic Calibration | Automatic ARC calibration by air pressure and temperature | ||||||||
| Electrode Life | 5000 ARCS | ||||||||
| Terminal | Mini USD 2.0 | ||||||||
| Standard configuration | |||||||||
| Name | model | quantity | Name | Model | quantity | ||||
| Host machine | FST-16H | 1pc | Carrying case | Xt02 | 1pc | ||||
| Fiber Cleaver | / | 1pc | Alcohol bottle | / | 1pc | ||||
| Battery | TPW-52 | 1pc | Cooling tray | TP01 | 1pc | ||||
| Spare electrode | E1 | 1 pair | Carrying Straps | / | 1pc | ||||
| Adapter | TPA150300 | 1pc | Test report | / | 1pc | ||||
| power cable | / | 1pc | User Manual | / | 1pc | ||||
| Fiber stripper(optional) | CFS-2 | 1pc | Cleaning kitbag (optional) | / | 1pc | ||||
| Cable stripper(optional) | WX-1101 | 1pc | Rubber Blower | / | 1pc | ||||
